FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 替换前一版本,2016年8月1日后不能再用旧版, 在此之前还可以用旧版本。
Special Note: The test procedures for DFS compliance for U-NII-2 devices have been updated and published in 905462 D02 UNII DFS Compliance Procedures New Rules v02. These new procedures will become mandatory after August 1, 2016.
变更内容总结:
Type 5 长雷达波由之前在指定带宽里随机选择中心频率变更为在固定的3个中心频率(频道中, 频道低边缘,频道高边缘)上各执行至少10次:

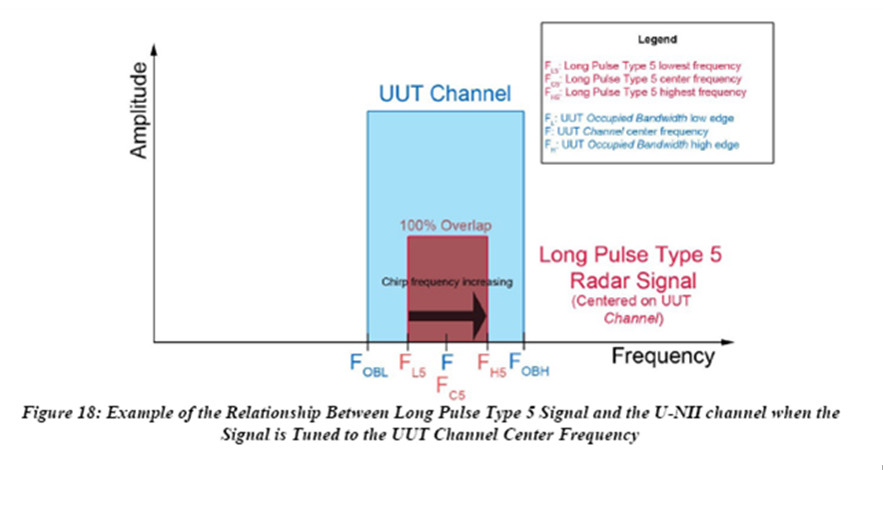

※ The Channel center frequency (Figure 18);
※ Tuned frequencies such that 90% of the Long Pulse Type 5 frequency modulation is within the low edge of the UUT Occupied Bandwidth (Figure 19); and
※ Tuned frequencies such that 90% of the Long Pulse Type 5 frequency modulation is within the high edge of the UUT Occupied Bandwidth (Figure 20).
